Product details of the off grid solar power systems
Product Description
HT SOLAR POWER
Product Details

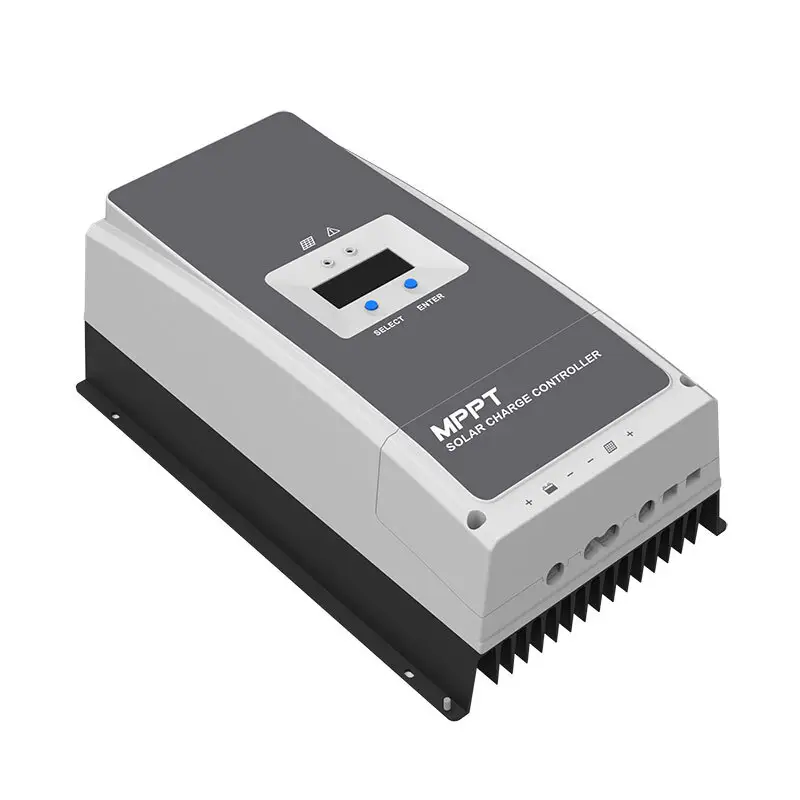

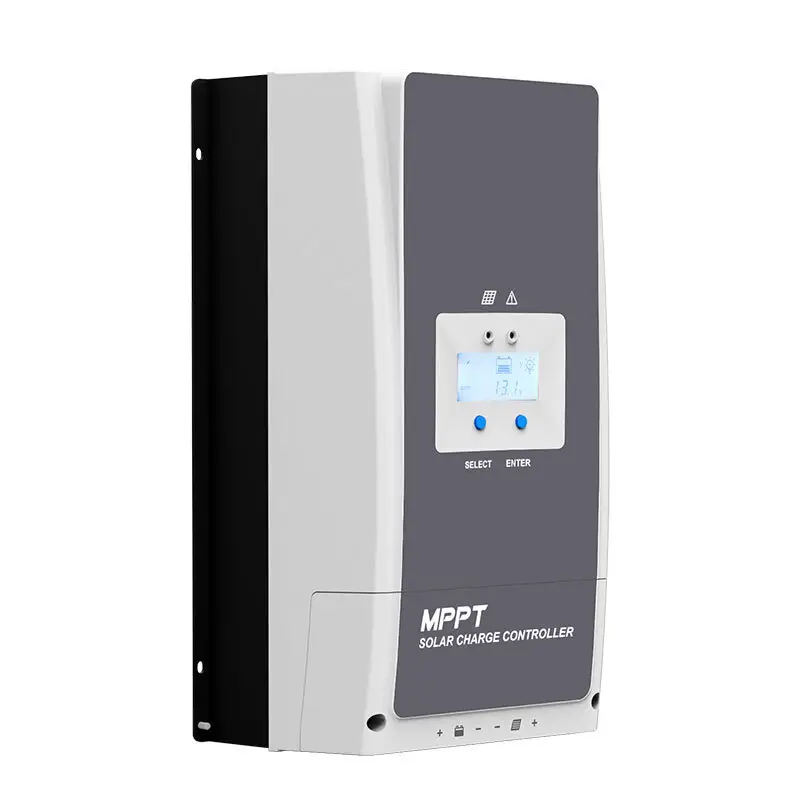

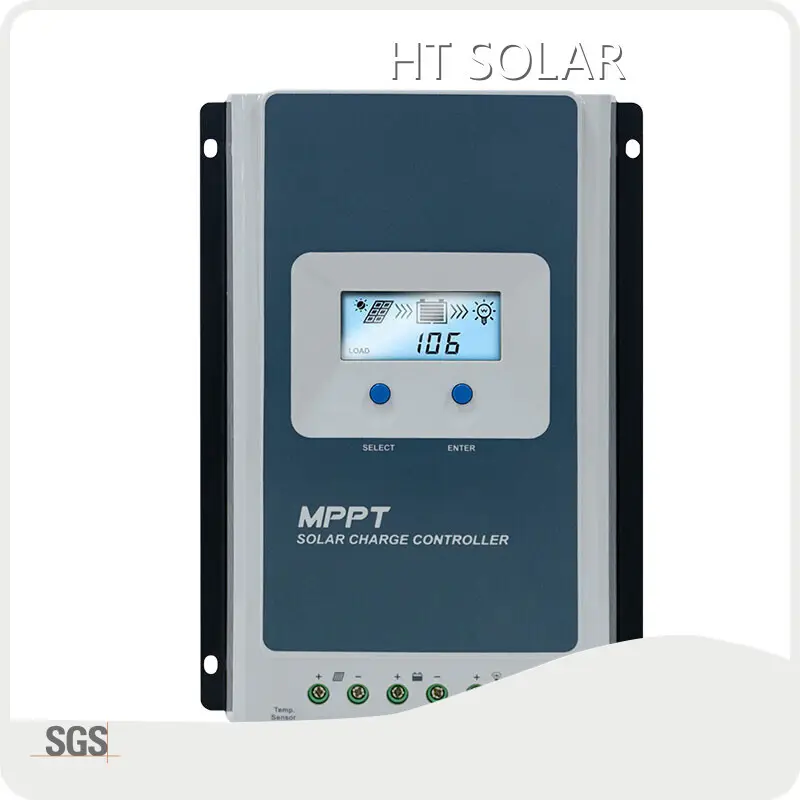

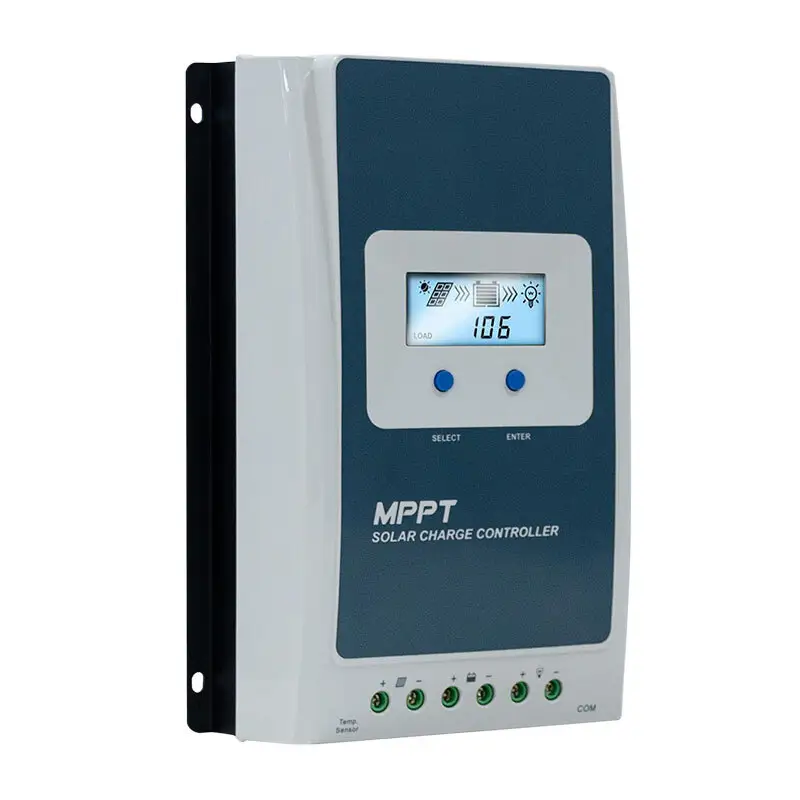

The Tracer-AN series (10A-100A) is designed based on the MPPT control algorithm and can quickly track the maximum power point of the photovoltaic array in any environment; it supports lead-acid batteries and lithium battery types with built-in multiple protection functions, and can be widely used in RVs , communication base stations, household systems and field monitoring and other fields.
The Off Grid Solar Controller has been designed to operate utilizing the maximum power point tracking (MPPT) control algorithm, allowing for quick and efficient tracking of the maximum power point of a photovoltaic array even in varied environmental conditions. In addition, this series is particularly well-suited for applications such as RV, communication base stations, residential systems, and field monitoring due to its ability to support lead-acid and lithium batteries coupled with its in-built protection functionalities.
Product Parameters
|
Model |
Tracer1206AN |
Tracer2206AN |
Tracer1210AN |
Tracer2210AN |
Tracer3210AN |
Tracer4210AN |
|
Nominal system voltage |
12/24VDC/auto |
|||||
|
Battery type |
Lead-acid (Sealed/Gel/Flooded)/Lithium (LiFePO4/Li(NiCoMn)O2)/User-defined |
|||||
|
Battery input voltage range |
8~32V |
|||||
|
Rated charge current |
10A |
20A |
10A |
20A |
30A |
40A |
|
Rated discharge current |
10A |
20A |
10A |
20A |
30A |
40A |
|
Rated charge power |
130W/12V260W/24V |
260W/12V520W/24V |
130W/12V260W/24V |
260W/12V520W/24V |
390W/12V780W/24V |
520W/12V1040W/24V |
|
MPPT conversion efficiency |
≤98.09% |
|||||
|
MPPT tracking efficiency |
≥99.5% |
|||||
|
Max. PV open circuit voltage |
60V(at minimum operating environment temperature); 46V(25℃) |
100V(at minimum operating environment temperature); 92V(25℃) |
||||
|
MPP voltage range |
(Battery voltage +2V)～36V |
(Battery voltage +2V)～72V |
||||
|
Equalization voltage |
Sealed:14.6V; Flooded:14.8V; User-defined:9-17V |
|||||
|
Boost voltage |
Sealed:14.4V; Gel:14.2V; Flooded:14.6V; LiFePO4(4S):14.4V; Li(NiCoMn)O2(3S):12.4V; User-defined:9-17V |
|||||
|
Float voltage |
Gel/Sealed/Flooded:13.8V; LiFePO4(4S):13.6V; Li(NiCoMn)O2(3S):11.8V; User-defined:9-17V |
|||||
|
Low voltage reconnect voltage |
Gel/Sealed/Flooded:12.6V; LiFePO4(4S):12.4V; Li(NiCoMn)O2(3S):10.4V; User-defined:9-17V |
|||||
|
Low voltage disconnect voltage |
Gel/Sealed/Flooded:11.1V; LiFePO4(4S):11.0V; Li(NiCoMn)O2(3S):9.2V; User-defined:9-17V |
|||||
|
Self-consumption |
≤12mA |
|||||
|
Temperature compensation |
-3mV/℃/2V(default); lithium batteries do not require temperature compensation |
|||||
|
Relative humidity |
≤95%, no condensation |
|||||
|
Enclosure |
IP30 |
|||||
|
Communication interface |
RS485(RJ45) |
|||||
|
Grounding |
Common negative grounding |
|||||
|
Operating temperature |
-25℃~+45℃ (full load operation) |
|||||
|
Dimensions(L*W*H) (mm) |
172*139*44 |
220*154*52 |
172*139*44 |
220*154*52 |
228*164*55 |
252*180*63 |
|
Net weight |
0.57KG |
0.94KG |
0.57KG |
0.94KG |
1.26KG |
1.65KG |
