Product Parameters

Model	Rated voltage (V)	Rated capacity (Ah/10Hr)	Dimensions(mm)
Model	Rated voltage (V)	Rated capacity (Ah/10Hr)	Length	Width	Height	Total height
CN(J)-200	2	200	171	106	330	342
CN(J)-300	2	300	171	151	330	342
CN(J)-400	2	400	196	171	330	342
CN(J)- 500	2	500	241	171	330	342
CN(J)-600	2	600	285	171	330	342
CN(J)-800	2	800	M3	171	330	342
CN(J)-1000	2	1000	471	171	330	342
CN(J)-1200	2	1200	510	175	337	347
CN(J)-1500	2	1500	318	341	341	351
CN(J)-2000	2	2000	433	342	341	351
CN(J)-2500	2	2500	629	346	341	351
CN(J)-3000	2	3000	629	346	341	351
6-CN(J)-8	12	8	151	65	95	99
6-CN(J)-12	12	12	151	100	97.5	102
6-CN(J)-14	12	14	151	100	97.5	102
6-CN(J)-20	12	20	181	77	170	175
6-CN(J)-24	12	24	165	126	175	181
6-CN(J)-30	12	30	196	165	174	181
6-CN(J)-40	12	40	196	165	174	181
6-CN(J)-50	12	50	229	138	210	230
6-CN(J)-60	12	60	350	166	174	174
6-CN(J)-65	12	65	350	166	174	174
6-CN(J)-70	12	70	350	166	174	174
6-CN(J)-80	12	80	329	172	214	236
6-CN(J)-90	12	90	329	172	214	236
6-CN(J)-100	12	100	329	172	214	236
6-CN(J)-110	12	110	406	174	208	232
6-CN(J)-120	12	120	406	174	208	232
6-CN(J)-150	12	150	483	170	240	240
6-CN(J)-180	12	180	522	240	219	244
6-CN(J)-200	12	200	522	240	219	244
6-CN(J)-220	12	220	522	240	219	244
6-CN(J)-250	12	250	520	269	220	245

Product Features

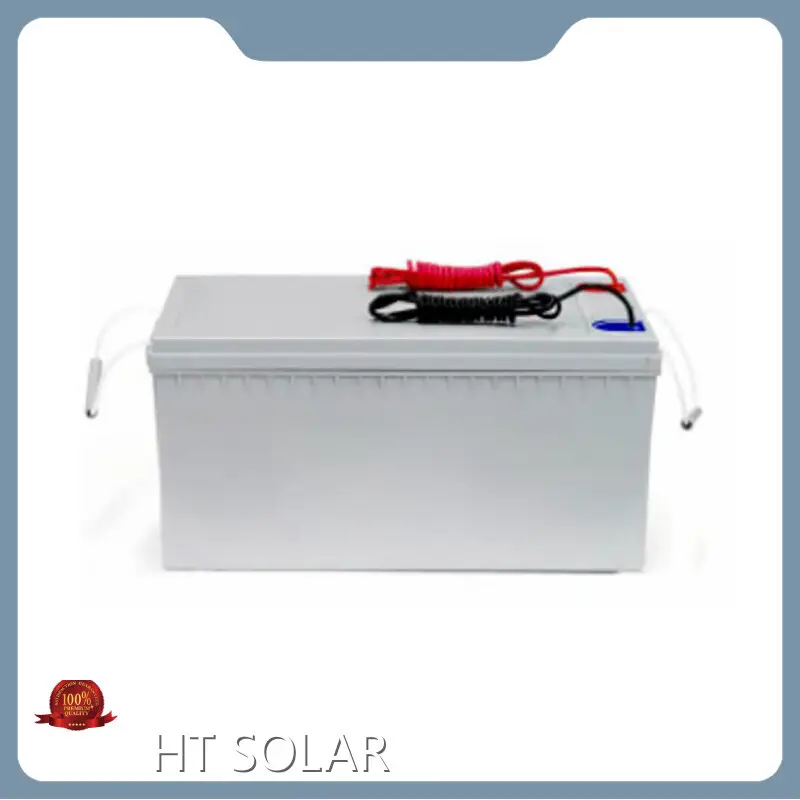

The products are mainly divided into two series: lead-acid and gel. Among them, gel batteries are particularly outstanding because of their wide range of high and low temperature resistance, strong over-discharge recovery ability and long cycle life.

Patented structure: The lead-type structure for easy connection realizes true underground installation and avoids pole corrosion.

Recovery performance: Using a special alloy and lead paste formula, it has a low self-discharge rate, is resistant to deep discharge and has strong capacity recovery capabilities.

Charging efficiency: Using imported low-resistance raw materials and advanced process design, it has small internal resistance and has strong low-current charging capability.

High and low temperature: It has a wide temperature range (lead acid: -25℃~50℃/gel -35℃~60℃), suitable for indoor and outdoor and can be used in various environments.

Ultra-long life: Using multi-element rare earth alloys with independent intellectual property rights and independently developed nano-scale full colloidal electrolytes based on nano-scale fumed silica originating from Germany, the battery design life is more than 15 years for lead-acid and more than 18 years for gel.

Green and environmentally friendly: The battery formula does not contain pickaxe substances that pollute the environment and are difficult to recycle, and the colloidal electrolyte has no leakage, truly ensuring the environmental protection and safety of the battery.

Company Advantages

· HT SOLAR POWER solar power kit is designed in accordance with the industry conditions.

· The product has the advantages of strong functionality, high performance.

· With so many remarkable advantages, the prospect of the product in the future market application is brilliant.

Company Features

· Huatong Yuanhang (Beijing) Technology Development Co., Ltd has enhanced solar power kit products to give quality services.

· Over the years, we have won the trust and respect from overseas customers. Thanks to the quality products we produce, we now have accumulated many customers resources and a large market share.

· We are searching for a sustainable way to conduct our business. For example, we develop and manufacture our products in a way that ensures they are safe, environmentally friendly and economical.

Application of the Product

HT SOLAR's solar power kit can be used in different industries to meet the needs of customers.

HT SOLAR insists on providing customers with reasonable solutions according to their actual needs.

we welcome custom designs and ideas and is able to cater to the specific requirements. for more information, please visit the website or contact us directly with questions or inquiries.
