Product details of the solar panel system for house

Quick Overview

The design of HT SOLAR POWER solar panel system for house focuses on the technique and function. Manufactured in accordance with the international quality standards, the product features excellent performance and perfect function. Huatong Yuanhang (Beijing) Technology Development Co., Ltd enjoys a network of exclusive partnerships with many solar panel system for house brands.

Product Information

We pursue perfection in every detail of the solar panel system for house we produce. And our products represent the excellent quality.

Product advantages

● Integrated and off-grid solution

● Compact design

● LCD touch screen

● Seamless switching between parallel and off-grid

● Oil machine remote control

● Programmable working mode

Product Parameters

Communication (grid connected)	Hps5000tls	Hps7500tls	Hps10000tls
Apparent output	6.25KVA	9.4KVA	12.5KVA
Power rating	5KW	7.5KW	10KW
RatedVoltage	230V	230V	230V
Rated current	21.5A	32.6A	43.4A
Voltage range	210V-250V	210V- 250V	210V-250V
Rated frequency	50/60HZ	50/60HZ	5q/60HZ
Frequency range	47~51.5/57~61.5HZ	47~51.5/57~61.5HZ	47~51.5/57~61.5HZ
Thdi	<3%	<3%	<3%
Power factor	0.8 lead~0.8 lag	0.8 lead~0.8 lag	0.8 lead~0.8 lag
Communication system	L/n/pe	L/n/pe	L/n/pe
Communication (off-grid)
Apparent output	6.25KVA	9.4KVA	12.5KVA
Power rating	5KW	7.5KW	10KW
RatedVoltage	230V	230V	230V
Rated current	21.5A	32.6A	43.4A
Thdu	≤2% linear	≤2% linear	≤2% linear
Rated frequency	50/60HZ	50/60HZ	50/60HZ
OVerload capacity	110%-10 minutes 120%-1 minute	110%-10 minutes 120%-1 minute	110%-10 minutes 120%-1 minute
Dc (cell and pV)
Maximum pV open-circuitVoltage	600V	750V	750V
PV power is recommended	6KWP	9KWP	12KWP
Mppt PV mpptVoltage range	125V-550V	370V-600V	370V-600V
Mppt Mppt quantity	2	2	2
Rrated batteryVoltage	300V	350V	450V
BatteryVoltage range	85-600V	280-700V	280-700V
Full-load batteryVoltage range	250-600V	300-700V	400-700V
Maximum charge / discharge power	5KW	7.5KW	10KW
Maximum charge / discharge current	25A	25A	25A
Basic information
Essential information	PhotoVoltaic dc switch and fuse, battery circuit breaker and fuse, power grid circuit breaker, load circuit breaker
LeVels of protection	Ip65	Ip65	Ip65
Noise	<65db(a)@1m	<65db(a)@1m	<65db(a)@1m
Running temperature	-25°c~+55°c	-25°c～ +55°c	-25°c~+55°c
Cooling-down method	Air blast cooling	Air blast cooling	Air blast cooling
RelatiVe humidity	0~95% with no condensation	0~95% with no condensation	0~95% with no condensation
The highest altitude	6000m (drop oVer 3000m)	6000m (drop oVer 3000m)	6000m (drop oVer 3000m)
Dimensions (width / height / thick)	600/700/250mm	600/700/250mm	600/700/250mm
Weight	50KG	50KG	50KG
Topology structure	No transformer	No transformer	No transformer
Lightning protection	Type ll	Type ll	Type ll
And switch time off the grid	Automatic≤10ms	Automatic≤10ms	Automatic≤10ms
Standby power consumption	<20W	<20W	<20W
Communication
Display	Touch screen	Touch screen	Touch screen
Communication interface	Rs485/can	Rs485/can	Rs485/can

		HPS7500TL		HPS10000TL
AC (On-grid)
Apparent power		9.4KVA		12.5KVA
Rated power		75KW		10KW
Rated voltage		400V		400V
Rated current		10.8A		14.4A
Voltage range		360V- 440V		360V- 440V
Rated frequency		50/60HZ		50/60HZ
Frequency range		47~51.5/57~61.5HZ		47~51.5/57~61.5HZ
THDI		< 3%		< 3%
Power factor		0.8leading - 0.8lagging		0.8leading - 0.8lagging
AC connection		3/N/PE		3/N/PE
AC (Off-grid)
Apparent power		9.4kVA		12.5kVA
Rated power		7.5KW		10KW
Rated voltage		400V		400V
Rated current		10.8A		14.4A
THDU		≤2% linear		≤2% linear
Rated frequency		50/60HZ		50/60HZ
Overload capacity		110%-10mins 120%-1min		110%-10mins 120%-1min
DC (Battery and PV)
Max. PV open-circuit voltage		750V		750V
Recommended PV power		9KWP		12KWP
PV MPPT voltage rang		370V-600V		370V-600V
Number of MPPT		2		2
Recommended rated battery voltage		350V		450V
Battery voltage range		280-700V		280-700V
Full load battery voltage range		300-700V		400-700V
Max. charge/discharge power		7.5KW		10KW
Max. charge/discharge current		25A		25A
Basic Parameters
Protection devices		PV DC switch, battery breaker and fuse, PV fuse, AC input breaker, load breaker
Protection degree		IP65		IP65
Noise		< 65dB(A)@1m		< 65dB(A)@1m
Operating temperature		-25°C~+55°C		-25°C~+55°C
Cooling		Forced air		Forced air
Relative humidity		0~95% no condensation		0~95% no condensation
Max. altitude		6000m (derate over 3000m)		6000m (derate over 3000m)
Dimensions (W×H×D)		600/700/250mm		600/700/250mm
Weight		50KG		50KG
Topology		Transformerless		Transformerless
Lighting protection		Type II		Type II
Transfer between on/off grid		Automatic≤10ms		Automatic≤10ms
Standby consumption		< 20W		< 20W
Communication
Display	Touch screen		Touch screen
Communication interface	RS485/CAN		RS485/CAN

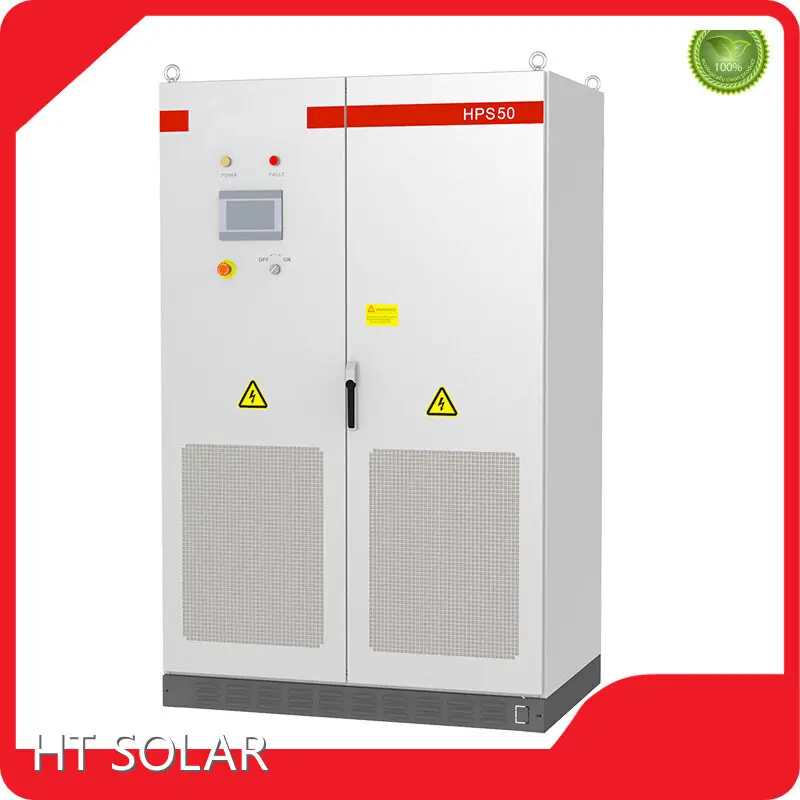

	HPS30	HPS50	HPS100	HPS120	HPS150
AC (On-grid)
Apparent power	33KVA	55KVA	110KVA	132KVA	165KVA
Rated power	30KW	50KW	100KW	120KW	15OKW
Rated voltage	400V	400V	400V	400V	400V
Rated current	43A	72A	144A	173A	217A
Voltage range	360V-440V	360V-440V	360V-440V	360V- 440V	360V-440V
Rated frequency	50/60HZ	50/60HZ	5060HZ	50/60HZ	50/60HZ
Frequency range	45-55/55-65HZ	45-55/55-65HZ	45-5555-65HHZ	45-55155-65HZ	45-55/55-65HZ
THDI	< 3%	< 3%	< 3%	< 3%	< 3%
Power factor	0.8leading~0.8lagging	0.8leading~0.8lagging	0.8leading~0.8lagging	0.8leading~0.8lagging	0.8leading~0.8lagging
AC connection	3/N/PE	3/N/PE	3/N/PE	3/N/PE	3/N/PE
AC input	60KVA	100KVA	200KVA	240KVA	240KVA
AC (Off-grid)
Apparent power	33KVA	55KVA	110KVA	132KVA	165KVA
Rated power	30KW	50KW	100KW	120KW	150KW
Rated voltage	400V	400V	400V	400V	400V
Rated current	43A	72A	144A	173A	217A
THDU	≤2% linear	≤2% linear	≤2% linear	≤2% linear	≤2% linear
Rated frequency	50/60HZ	50/60HZ	5Q60HZ	50/60HZ	50/60HZ
Overload capacity	110%-10mins 120%-1min	110%-10mins 120%-1min	110%-10mins 120%-1min	110%-10mins 120%-1min	110%-10mins 120%-1min
DC (Battery and PV)
Max. PV open-circuit voltage	1000V DC	1000V DC	1000V DC	1000V DC	1000V DC
Max. PV power	45KWP	75KWP	150KWP	180KWP	225KWP
PV MPPT voltage rang	480V-800V DC	480V-800V DC	480V-800 DC	480V-800V DC	480V-800V DC
Battery voltage range at maximum charge power	450V-600V	500V-600V	500V-600V	517V-600V	500V-600V
Battery voltage range	352-600V	352-600V	352-600V	352-600V	352-600V
Max. charge power	45KW	75KW	150KW	180KW	225KW
Max. discharge power	33KW	55KW	110KW	132KW	165KW
Max. charge current	100A	150A	300A	350A	450A
Max. discharge current	93A	156A	3134	374A	467A
Basic Parameters
Protection degree	IP20	IP20	IP20	IP20	IP20
Noise	< 65dB(A)@1m	< 65dB(A)@1m	< 65dB(A)@1m	< 65dB(A)@1m	< 65dB(A)@1m
Operating temperature	-25.C~+55.C	-25°C~+55°c	-25.C~+55°c	-25C~+55.c	-25°C~+55c
Cooling	Forced air	Forced air	Forced air	Forced air	Forced air
Relative humidity	0~95% no condensation	0~95% no condensation	0~95% no condensation	0~95% no condensation	0~95% no condensation
Max. altitude	6000m (derate over 3000m)	6000m (derate over 3000m)	6000m (derate over 3000m)	6000m (derate over 3000m)	6000m (derate over 3000m)
Dimensions (WHD)	7001660600omm	9501860750mm	12001900800mm	120019001800mm	12001900800mm
Weight	355kg	610kg	948kg	1025kg	1230kg
Build-in transformer	Yes	Yes	Yes	Yes	Yes
Transfer between on/off grid	Automatic≤10ms	Automatic≤10ms	Automatic≤10ms	Automatic≤10ms	Automatic≤10ms
Standby consumption	< 30W	< 30W	< 30w	30W	30W
Communication
Display	Touch screen	Touch screen	Touch screen	Touch screen	Touch screen
Communication interface	RS485/CAN	RS485/CAN	RS485/CAN	RS485/CAN	RS485/CAN
