Product details of the best solar generator

Product Introduction

All our best solar generator designs are original and unique. The testing data of the product is accurate and relible. This product provides various usage options.

Product Details

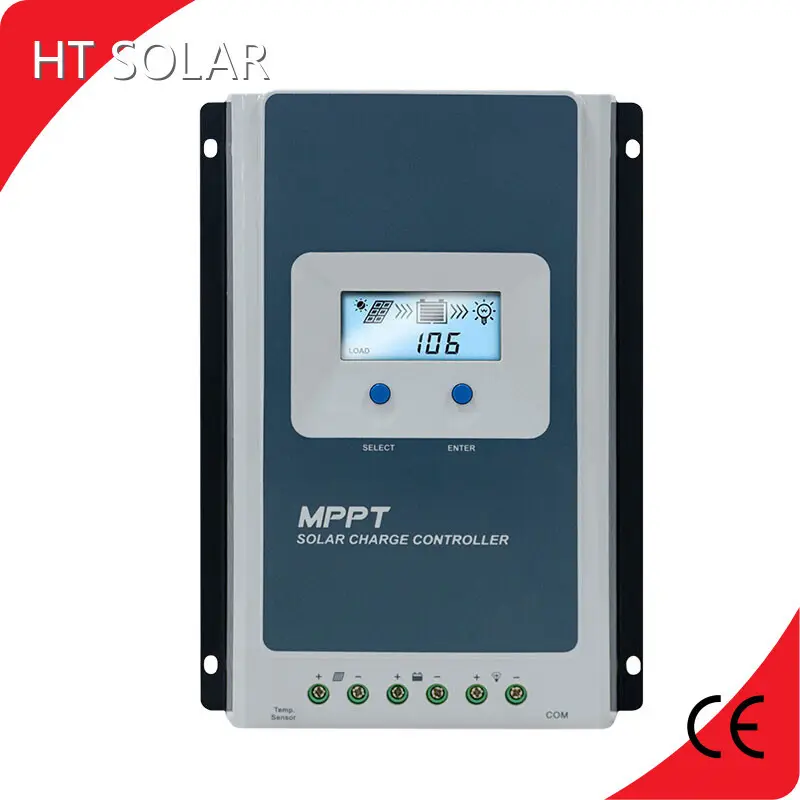

The Tracer-AN series (10A-100A) is designed based on the MPPT control algorithm and can quickly track the maximum power point of the photovoltaic array in any environment; it supports lead-acid batteries and lithium battery types with built-in multiple protection functions, and can be widely used in RVs , communication base stations, household systems and field monitoring and other fields.

The Off Grid Solar Controller has been designed to operate utilizing the maximum power point tracking (MPPT) control algorithm, allowing for quick and efficient tracking of the maximum power point of a photovoltaic array even in varied environmental conditions. In addition, this series is particularly well-suited for applications such as RV, communication base stations, residential systems, and field monitoring due to its ability to support lead-acid and lithium batteries coupled with its in-built protection functionalities.

Product Parameters

Model	Tracer1206AN	Tracer2206AN	Tracer1210AN	Tracer2210AN	Tracer3210AN	Tracer4210AN
Nominal system voltage	12/24VDC/auto
Battery type	Lead-acid (Sealed/Gel/Flooded)/Lithium (LiFePO4/Li(NiCoMn)O2)/User-defined
Battery input voltage range	8~32V
Rated charge current	10A	20A	10A	20A	30A	40A
Rated discharge current	10A	20A	10A	20A	30A	40A
Rated charge power	130W/12V260W/24V	260W/12V520W/24V	130W/12V260W/24V	260W/12V520W/24V	390W/12V780W/24V	520W/12V1040W/24V
MPPT conversion efficiency	≤98.09%
MPPT tracking efficiency	≥99.5%
Max. PV open circuit voltage	60V(at minimum operating environment temperature); 46V(25℃)		100V(at minimum operating environment temperature); 92V(25℃)
MPP voltage range	(Battery voltage +2V)～36V		(Battery voltage +2V)～72V
Equalization voltage	Sealed:14.6V; Flooded:14.8V; User-defined:9-17V
Boost voltage	Sealed:14.4V; Gel:14.2V; Flooded:14.6V; LiFePO4(4S):14.4V; Li(NiCoMn)O2(3S):12.4V; User-defined:9-17V
Float voltage	Gel/Sealed/Flooded:13.8V; LiFePO4(4S):13.6V; Li(NiCoMn)O2(3S):11.8V; User-defined:9-17V
Low voltage reconnect voltage	Gel/Sealed/Flooded:12.6V; LiFePO4(4S):12.4V; Li(NiCoMn)O2(3S):10.4V; User-defined:9-17V
Low voltage disconnect voltage	Gel/Sealed/Flooded:11.1V; LiFePO4(4S):11.0V; Li(NiCoMn)O2(3S):9.2V; User-defined:9-17V
Self-consumption	≤12mA
Temperature compensation	-3mV/℃/2V(default); lithium batteries do not require temperature compensation
Relative humidity	≤95%, no condensation
Enclosure	IP30
Communication interface	RS485(RJ45)
Grounding	Common negative grounding
Operating temperature	-25℃~+45℃ (full load operation)
Dimensions(LWH) (mm)	17213944	22015452	17213944	22015452	22816455	25218063
Net weight	0.57KG	0.94KG	0.57KG	0.94KG	1.26KG	1.65KG

Product Features

Ensuring a MPPT tracking efficiency of 99.5% and a charge conversion efficiency of up to 98%.

We offer complete solutions for lead-acid batteries and other battery types.

Charging current and power limitation function.

Automatic power reduction feature for high temperature charging.

Rely on the industry-standard Modbus protocol for RS-485 communication.

Real-time electricity statistics.

Multiple load control modes

Charging current limiting and power limiting function
