Product details of the portable power station with solar panel

Product Overview

HT SOLAR POWER portable power station with solar panel is well developed using modern machinery and production technology. Adopting the advanced testing equipment to inspect the product during the production process guarantees the great performance and consistent quality of the product. This product provides various usage options.

Product Description

The portable power station with solar panel produced by HT SOLAR is better than the previous generation. The specific performance is as follows.

Product Features

● Multi-busbar technology

Enhanced light utilization and improved current collection capability significantly boost both the power output and reliability of the product.

● Anti-hotspot capability

Optimizing the circuit design and current working conditions allows for more precise temperature coefficient and anti-hotspot characteristics.

● PID resistance guarantee

Optimizing battery production technology and material control help minimize the likelihood of PID, a phenomenon that causes attenuation.

● Adaptability to harsh environments

Our solar modules have obtained certification for passing third-party tests for high salt spray and high ammonia corrosion.

● Load capacity

The overall module is certified for a wind load of 2400Pa and a snow load of 5400Pa.

● Product certification

Components have been certified by UL, TUV, CE and CQC.

Mechanical Parameters

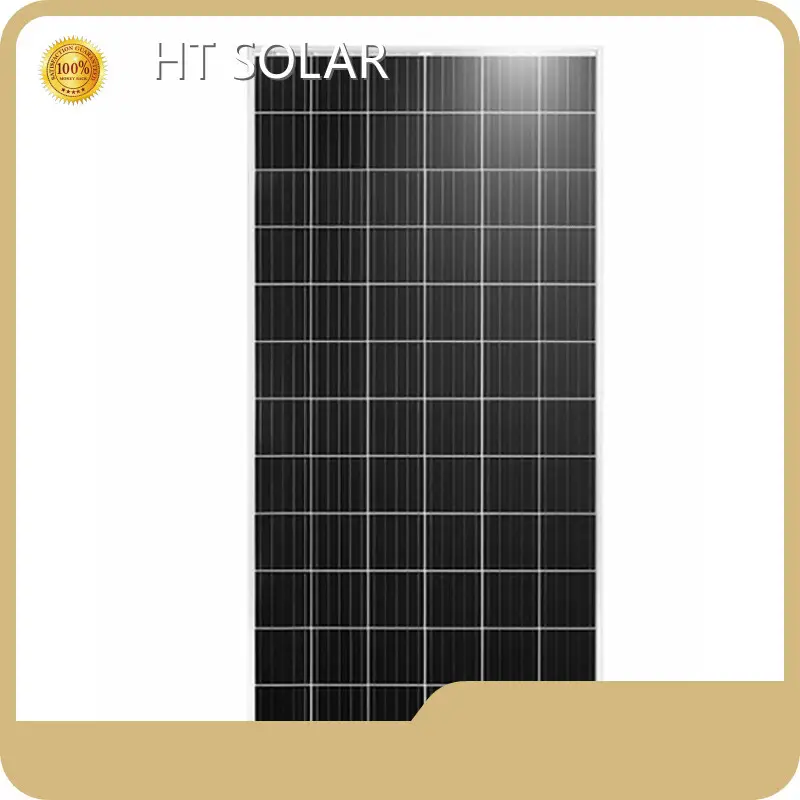

395-415 Watt Monocrystalline Solar Panels

Cell type	P-type monocrystalline solar cells
No. of cells	108(2×54)
Module dimensions	1722113430mm
Weight	22KG
Front glass	3.2 mm, anti-reflection coating, high transmission, low iron, tempered glass
Frame	Anodized aluminium alloy
Junction box	IP68 rated
Output cables	TÜV 1×4.0mm²(+):400mm, (-):200mm or customized length

Electrical Parameters

Module model	JKM395M-54HL4		JKM40OM-54HL4		JKM405M-54HL4		JKM410M-54HL4		JKM415M-54HL4
	STC	NOCT	STC	NOCT	STC	NOCT	STC	NOCT	STC	NOCT
Max. power (Pmax)	395Wp	294Wp	400Wp	298Wp	408Wp	301Wp	410Wp	305Wp	415Wp	309Wp
Max. power voltage (Vmp)	30.32V	28.26V	30.42V	28.42V	30.52V	28.56V	30.62V	28.72V	30.79V	28.88V
Max. power current (Imp)	13.03A	10.40A	13.15A	10.47A	13.27A	10.55A	13.39A	10.62A	13.48A	10.69A
Open circuit voltage (Voc)	36.90V	34.83V	36.98V	34.90V	37.06V	34.98V	37.14V	35.05V	37.31V	35.21V
Short circuit current (lsc)	13.71A	11.07A	13.78A	11.13A	13.85A	11.19A	13.92A	11.24A	14.01A	11.32A
Module efficiency (%)	20.23%		20.48%		20.74%		21.00%		21.25%
Operating temperature (℃)	40℃~+85℃
Max. system voltage	1000/1 500VDC(IEC)
Max. series fuse rating	25A
Power tolerance	0~+3%
Temperature coefficient of Pmax	-0.35%/℃
Temperature coefficient of Voc	-0.28%/℃
Temperature coefficient of Isc	0.048%/℃
Nominal operating cell temperature (NOCT)	45±2℃

Standard test conditions (STC): Solar Irradiance: 1000W/m2, Cell Temperature: 25°C, Air Mass: 1.5

Nominal Operating Cell Temperature (NOCT): Solar Irradiance: 800W/m2, Ambient Temperature: 20°C, Air Mass: 1.5, Wind Speed: 1 m/s

* The power measurement error of the solar panel is +/-3%.

Mechanical Parameters

450-470 Watt Monocrystalline Solar Panels

Cell type	P-type monocrystalline solar cells
No. of cells	120(6×20)
Module dimensions	1903113430mm
Weight	24.2KG
Front glass	3.2 mm, anti-reflection coating, high transmission, low iron, tempered glass
Frame	Anodized aluminium alloy
Junction box	IP67 rated
Output cables	TÜV 1×4.0mm2 (+):400mm,(-):200mm or customized length

Electrical Parameters

Module model	JKM450M-60HL4		JKM455M-60HL4		JKM46QM-60HL4		JKM465M-6QHL4		JKM47OM-60HL4
	STC	NOCT	STC	NOCT	STC	NOCT	STC	NOCT	STC	NOCT
Max. power (Pmax)	450WP	335WP	455WP	339WP	400WP	342WP	465WP	346WP	470WP	350WP
Max. power voltage (Vmp)	33.91V	31.73V	34.06V	31.91V	34.20V	32.07V	34.37V	32.12V	34.56V	32.32V
Max. power current (Imp)	13.27A	10.55A	13.36A	10.61A	13.45A	10.67A	13.53A	10.77A	13.60A	1082A
Open circuit voltage (Voc)	41.18V	38.87V	41.33V	39.01V	41.48V	39.15V	41.63V	39.29V	41.78V	39.43V
Short circuit current (lsc)	13.85A	11.19A	13.934	11.25A	14.01A	11.32A	14.09A	11.38A	14.17A	11.44A
Module efficiency (%)	20.85%		21.08%		21.32%		21.55%		21.78%
Operating temperature (C)	-40℃~+85℃
Max. system voltage	1000/1500VDC (IEC)
Max. series fuse rating	25A
Power tolerance	0~+3%
Temperature coefficient of Pmax	-0.35%/℃
Temperature coefficient of Voc	-0.28%/℃
Temperature coefficient of Isc	0.048%/℃
Nominal operating cell temperature (NOCT)	45±2℃

Standard test conditions (STC): Solar Irradiance: 1000W/m2, Cell Temperature: 25°C, Air Mass: 1.5

Nominal Operating Cell Temperature (NOCT): Solar Irradiance: 800W/m2, Ambient Temperature: 20°C, Air Mass: 1.5, Wind Speed: 1 m/s

* The power measurement error of the solar panel is +/-3%.

Mechanical Parameters

540-560 Watt Monocrystalline Solar Panels

Cell type	P-type monocrystalline solar cells
No. of cells	144(6×24)
Module dimensions	2278113435mm
Weight	28KG
Front glass	3.2 mm, anti-reflection coating, high transmission, low iron, tempered glass
Frame	Anodized aluminium alloy
Junction box	IP68 rated
Output cables	TÜV 1×4.0mm2 (+):300mm,(-):200mm or customized length

Electrical Parameters

Module model	JKM540M-72HL4		JKM545M-72HL4		JKM550M-72HL4		JKM555M-72HL4		JKM560M-72HL4
	STC	NOCT	STC	NOCT	STC	NOCT	STC	NOCT	STC	NOCT
Max. power (Pmax)	540WP	402WP	545WP	405WP	550WP	409WP	555WP	413WP	560WP	417WP
Max. power voltage (Vmp)	40.70V	38.08V	40.80V	38.25V	40.90V	38.42V	40.99V	38.59V	41.09V	38.69V
Max. power current (Imp)	13.27A	10.55A	13.36A	10.60A	13.45A	10.65A	13.54A	10.70A	13.63A	10.77A
Open circuit voltage (Voc)	49.42V	46.65V	49.52V	46.74V	49.62V	46.84V	49.72V	46.93V	49.82V	47.02V
Short circuit current (lsc)	13.85A	11.19A	13.94A	11.26A	14.03A	11.33A	14.12A	11.40A	14.21A	11.48A
Module efficiency (%)	20.90%		21.10%		21.29%		21.48%		21.68%
Operating temperature (℃)	-40℃~+85℃
Max. system voltage	1000/1500VDC (IEC)
Max. series fuse rating	25A
Power tolerance	0~+3%
Temperature coefficient of Pmax	-0.35%/ ℃
Temperature coefficient of Voc	-0.28%/ ℃
Temperature coefficient of Isc	0.048%/ ℃
Nominal operating cell temperature (NOCT)	45±2 ℃

Standard test conditions (STC): Solar Irradiance: 1000W/m2, Cell Temperature: 25°C, Air Mass: 1.5 Nominal Operating Cell Temperature (NOCT): Solar Irradiance: 800W/m2, Ambient Temperature: 20°C, Air Mass: 1.5, Wind Speed: 1 m/s * The power measurement error of the solar panel is +/-3%.
