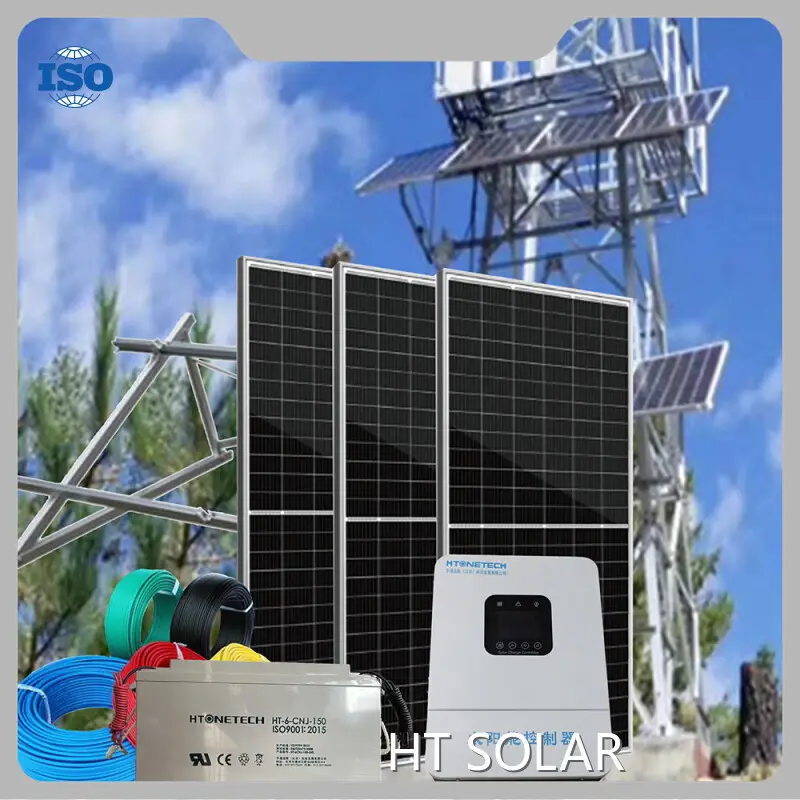

Hot Solar Power Systems with Battery Storage HT SOLAR POWER Brand

Inquiry

more products

Solar Power System

Solar System Kits

Solar Products

Send your inquiry

Working principle

Photovoltaic panels are power generation components. The photovoltaic controller regulates and controls the electric energy it generates. On the one hand, it sends the adjusted energy to the DC load or AC load, and on the other hand, it sends the excess energy to the battery bank for storage.

When the power generated by the photovoltaic module cannot be When the load needs are met, the controller sends the battery energy to the load. After the battery is fully charged, the controller controls the battery from being overcharged. When the electric energy stored in the battery is deeply discharged, the controller controls the battery not to be over-discharged.

Product Parameters

Name	Plant capacity	operate time	working voltage	rainy day	Component advice	Battery advice
Small off-grid power supply system	10W	24H	AC220V	3 day	100W	24V 40AH
	20W	24H	AC220V	3day	200W	24V 80AH
	50W	24H	AC220V	3day	500W	24V 200AH
Neutral off-grid power supply system	100W	24H	AC220V	3day	1000W	48V 200AH
	200W	24H	AC220V	3day	2000W	48V 400AH
	500W	24H	AC220V	3day	5000W	48V 1000AH
Large-scale off-grid power supply system	1000W	24H	AC220V	3day	10KW	230V 400AH
	2000W	24H	AC220V	3day	20KW	230V 800AH
	5000W	24H	AC220V	3day	50Kw	230V 2000AH
Note	Different location, different sunshine, the configuration is for reference only

System advantages

The power supply system is customized and designed according to the customer's power needs to ensure that the power supply system meets the power needs of the electrical equipment, that is, it does not waste the customer's investment and does not cause the problem of insufficient power supply.

The power supply system adopts highly integrated technology with independent intellectual property rights, providing one-stop support and nanny-style technical services, eliminating the technical difficulties of customers' own design and installation and the problem of excessive investment.

Each component of the power supply system selects products that have passed third-party quality and standard verification, and conducts third-party certification and testing of complete sets of power supply system products to ensure the excellence of the product quality of the power supply system and the cost-effectiveness of the products.

The power supply system adopts MPPT+smart control technology to 100% guarantee that the electricity load will not be cut off due to irregular weather problems, ensuring the stability and safety of electricity.

The power supply system makes full use of advanced redundancy technology + 4G technology to remotely turn on power supply equipment and perform multi-level power management for electrical equipment to ensure the emergency power needs of priority equipment in extreme weather or emergencies.

The power supply system adopts mature technology and technology, with 15 years of industry experience. It is recognized and supported by a wide range of industry owners and group customers. It has been awarded the "Most Influential Brand". Choosing Huatong Yuanhang means choosing safety and stability.

Scope of application

Plateaus, islands, remote mountainous areas and field operations with harsh environments. It can also be used as power supply for communication base stations, advertising light boxes, street lamps, etc. It is widely used in road video surveillance, forest fire monitoring, power tower monitoring, water conservancy facilities monitoring, farmland Irrigation monitoring, reservoir dam monitoring, flash flood disaster monitoring, oil field and oil well monitoring, fishery and pastoral area monitoring, oil pipeline monitoring, telecommunications mobile base stations, border defense posts, military barracks power supply, etc.

Company Advantages

· solar power systems with battery storage's performance is popularly accepted in the country and abroad.

· Its reliable performance outperforms similar products in the industry.

· This product is continuously updated to meet the market demands.

Company Features

· Huatong Yuanhang (Beijing) Technology Development Co., Ltd has grown into a famous company with years of experience in the industry. Throughout our history, we have remained focus on providing solar power systems with battery storage.

· Huatong Yuanhang (Beijing) Technology Development Co., Ltd has long been committed to researching and developing sophisticated and practical technologies and solutions in solar power systems with battery storage development.

· We hope that in the future we could be a leading supplier in the solar power systems with battery storage industry.

Application of the Product

The solar power systems with battery storage produced by HT SOLAR is widely used in industry.

HT SOLAR insists on providing customers with reasonable solutions according to their actual needs.

we welcome custom designs and ideas and is able to cater to the specific requirements. for more information, please visit the website or contact us directly with questions or inquiries.
